QFX

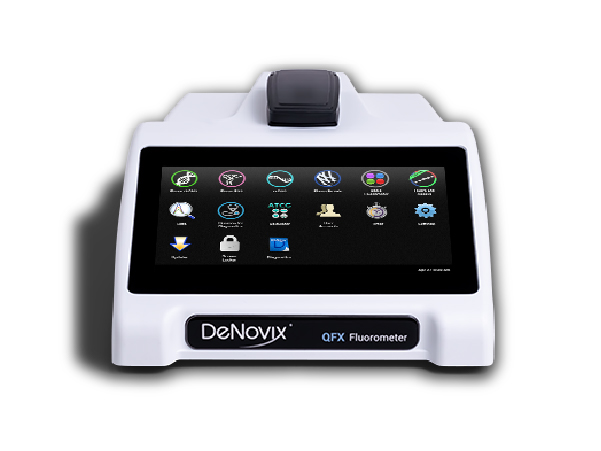

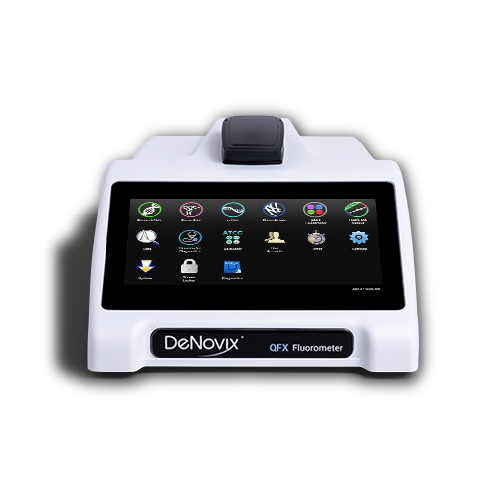

The DeNovix QFX Fluorometer offers the widest dynamic range, greatest sensitivity, and ground-breaking ease of use. The QFX includes four excitation sources and requires as little as 1 ¥ìL of sample. The system is compatible with DeNovix dsDNA and RNA Fluorescence Quantification assays, commonly used Thermo Fisher Qubit¢â assays, or user-configured custom assays.
Feature
- 1
Best-in-Class Dynamic Range & Sensitivity (0.5pg/¥ìL - 4000ng/¥ìL dsDNA)
- 2
Wi-Fi, Ethernet, USB
- 3
Dynamic Range & Sensitivity
- 4
UV, Blue, Green, Red Fluorescence
- 5
Android OS with Intuitive EasyApps
Specification
Fluorometer
| Light Sources | UV LED (~375 nm), Blue LED (~470 nm), Green LED (~525 nm), Red LED (~635 nm) |
| Excitation Filters | UV: 361 - 389 nm, Blue: 442 - 497 nm, Green: 490 - 558 nm, Red: 613 - 662 nm |
| Emission Filters | 435 - 485 nm, 514 - 567 nm, 565 - 650 nm, 665 - 740 nm |
| Detectors | Photodiode, Detection Range 300 - 1000 nm |
| Tube Type | 0.5 mL thin-wall PCR tubes |
| Measurement Time | <2 seconds |
User Interface
| Display | 7¡± HD Color Touchscreen |
| User Input | Touch screen with swipe and pinch motion; glove compatible |
| Internal Storage | 32GB Flash Drive |
| Connectivity | Wi-Fi, Ethernet, 2 USB ports |
| Accessories | USB printer; barcode reader, keyboard, mouse |
General
| Weight | 1.5 kg |
| Footprint | 20 x 27 cm |
| Operating Voltage | 12 VDC |
| Power Consumption | 10 W; max 36 W |
| Approvals | CE, UL/CSA, FCC, Japan CAB |
| Manufacture Location | USA |
| Warranty | 2 Year Standard |
| Color | Fire Red |
Product Information
| Cat No. | ǰ¸í | ±Ô°Ý | Á¦Á¶»ç |
|---|---|---|---|
| DS-11 | Microvolume Spectrophotometer | - | DeNovix |
| DS-11+ | Microvolume Spectrophotometer with Cubette mode | - | DeNovix |
| DS-11 FX | Microvolumen Spectrophotometeometer /Fluorometer | - | DeNovix |
| DS-11 FX+ | Microvolume Spectrohotometer /Fluorometer with Cuvette mode | - | DeNovix |
| DS-8x | Eight Channel Spectrophotometer | - | DeNovix |
| DS-7 | UV-Vis Spectrophotometer | - | DeNovix |
| DS-7+ | UV-Vis Spectrophotometer with Cuvette mode | - | DeNovix |
| Helium | Microvolume Spectrohotometer | - | DeNovix |
| QFX | Flourometer | - | DeNovix |
