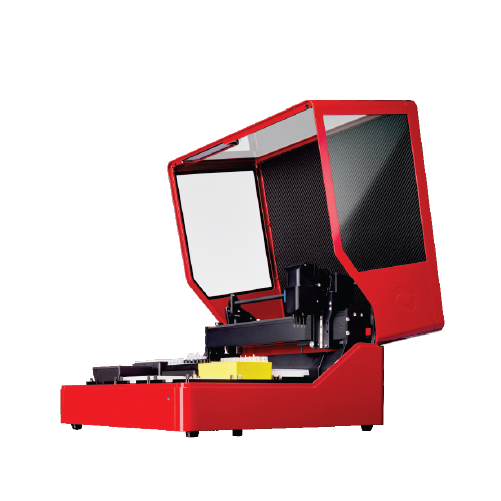

An evolution of the original Myra
:Myra9
최첨단 알고리즘과 내장 카메라를 탑재한 자동 액체 분주 시스템 Myra가 더 크고 강력한 Myra9으로 진화했습니다.
넓어진 작업 공간과 향상된 처리 능력으로 더 크고 복잡한 프로토콜도 손쉽게 수행할 수 있습니다.
반복적인 분주 작업을 자동화하고, 더욱 중요한 연구에 집중해보세요.
Myra9의 속도, 정확성 그리고 직관적인 소프트웨어로 당신의 시간을 절약하세요.

Feature
- 1
Simplicity
· 48 - 96 - 384 plate / strip 모든 제품 완벽 지원
· One click calibration
· Easy to Use Software - 2
Size
· Deck position이 9개로 확장
· 17 kg의 가볍지만 clean한 환경 제공
· UV LED light 및 HEPA filter 시스템 - 3
Performance
· 정밀한 경로제어 : 정밀한 위치 보정 및 error 감지
· Pipette의 뛰어난 균일성 및 정확도
· Calibration 된 pipette head의 쉬운 교체
· Integrated Vision System : Robot arm에 내장된 CCD camera로 쉬운 calibration
Performance
Precision; Means sample repeatability
· KRAS human genomic DNA target.
· 10,000 copies per reaction.
· 48 replicates setup using 1 µL of template per 25 µL reaction.
· Cq = 19.23 | σ = 0.05 | Δmax-min= 0.25 | CV = 0.3%
Accuracy and precision maintained
· Capricious gene
· 8 point, 2 fold dilution series of the template run in replicates of 4.
· E = 96%; R2 = 0.9993.
Specifications

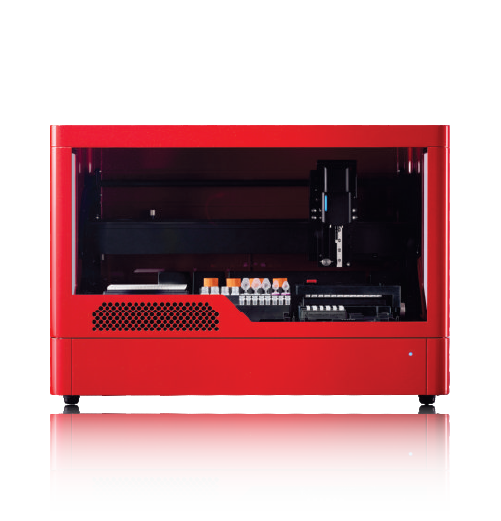

Front

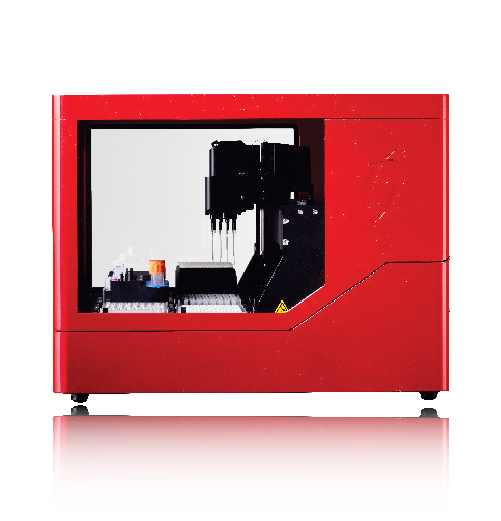

Side
Physical
| Height | 356 mm (635 mm lid open) |
| Width | 520 mm |
| Length | 468 mm |
| Weight | 17 kg |
Performance
| Position control | Closed loop, 100 μm resolution |
| Calibration | High precision camera |
Pipette
| Pipetting volume range | 1 – 50 μL |
| Liquid level detection | Pressure sensing |
| Tips per rack | 384 |
| Dispense modes | Single and multi |
| Precision | 1 ul: < 5% CV |
| Accuracy | 1 μL: < 10% 5 – 50μL: < 1% |
Contamination Control
| Tip disposal type | Internal enclosed waste container |
| HEPA filter | 99.98% at 0.3 μm |
| UV lamp | High intensity 70 mW 280 nm UV LED |
Communication
| Type | USB 2.0 |
| PC Requirements | Intel i5 or equivalent processor, 8 GB RAM, 3 GB HD, 1080p screen resolution |
Operating Environment
| Temperature range | 18 – 30ºC |
| Humidity | 20 – 80% |
Product information
| Cat No. | 품명 | 규격 | 제조사 | 제품정보 |
|---|---|---|---|---|
| Myra9 | Myra9 Liquid Handling System | - | Bio molecular systems | - |
